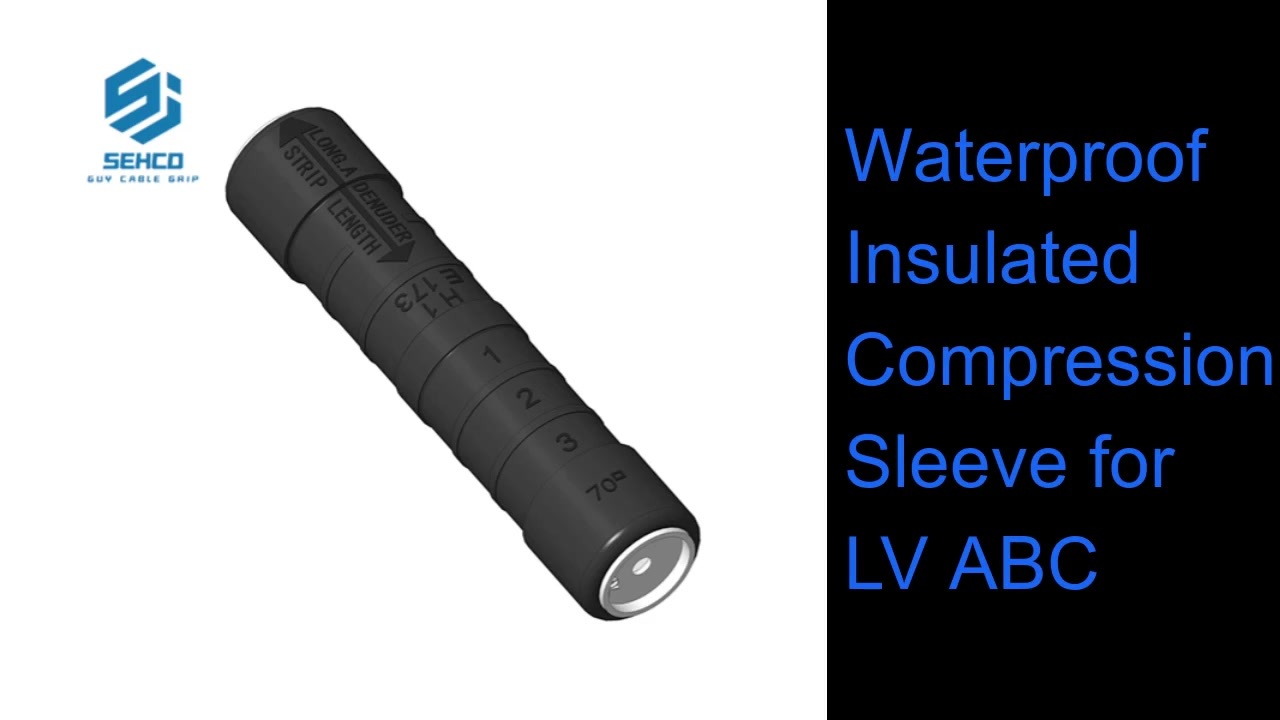

Waterproof Insulated Compression Sleeve for LV ABC

Category: ABC Fittings

Description Inner tube is made of high strength aluminum alloy. Insulated jacket is made of UV and weather resistant polyamide. Sealing cap is made of PVC. Features Mechanical strength is not less than 60% of cable’s UTS. Voltage withstand in water is 6 kV after immersed in a water tank for 30 minutes. Joint compound is filled into the sleeves to assure of good conductivity. Sealed with caps to avoid water and humidity enter into the sleeves.

Consult Back

Cat. No.	Cross Section (mm²)	Diameter d (mm)	L (mm)	Mass (kg)
ICS-16	16 – 16	Ø 5.3	70	0.025
ICS-25	25 – 25	Ø 6.5	70	0.025
ICS-35	35 – 35	Ø 8.0	70	0.025
ICS-50	50 – 50	Ø 9.3	102	0.048
ICS-70	70 – 70	Ø 10.7	102	0.048
ICS-95	95 - 95	Ø 12.5	136	0.096
