Stainless Steel Banding Band and Buckle

Category: ABC Fittings

Description Made of ASTM SUS304 stainless steel. The chemical composition of Nickel (Ni) is 8~10% and the chemical composition of Chrome (Cr) is 18~20%. Features Conditional yield strength Rp0.2≥207 MPa (N/mm2). Ultimate tensile strength Rm≥517 MPa (N/mm2). Elongation≥30% Compliance with ASTM A240/A240M

Consult Back

Catalog No. of Bands		Length/coil		Width		Thickness

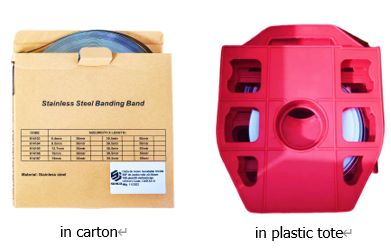

in carton	in plastic tote	meters	ft.	inches	mm	inches	mm
C91299	C91299/P	30	100	1/4	6.4	0.0197	0.50
C91399	C91399/P	30	100	3/8	9.5	0.0276	0.70
C91499	C91499/P	30	100	1/2	12.7	0.0276	0.70
C91599	C91599/P	30	100	5/8	16.0	0.0150	0.38
C92699	C92699/P	30	100	3/4	19.0	0.0150	0.38

Catalog No. of Buckles		For Band (width)

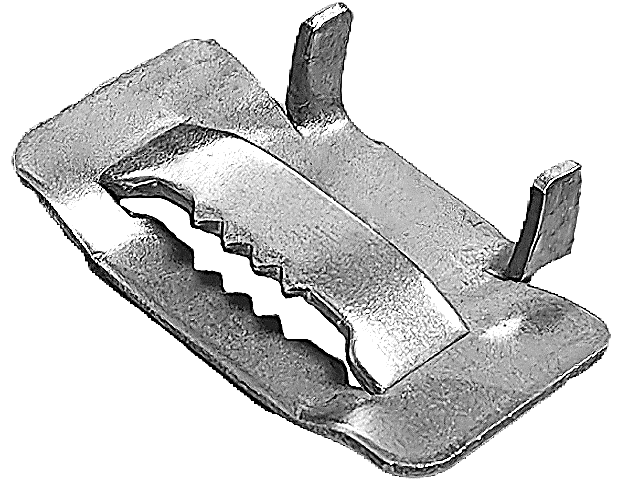

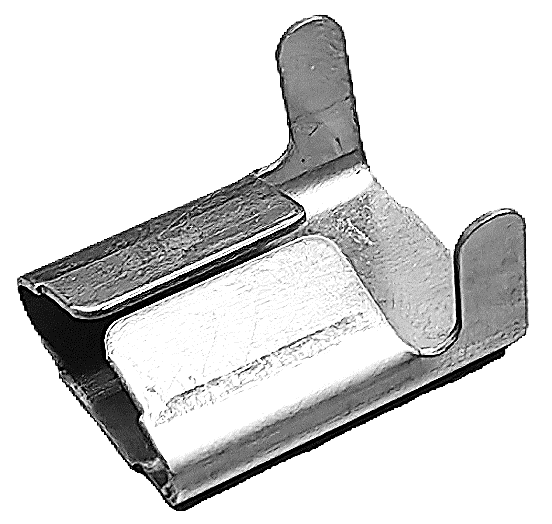

Ear-lokt type	L type	inches	mm
C25299	SSBL1/4	1/4	6.4
C25399	SSBL3/8	3/8	9.5
C25499	SSBL1/2	1/2	12.7
C25599	SSBL5/8	5/8	16
C25699	SSBL3/4	3/4	19
