Pigtail Bolt

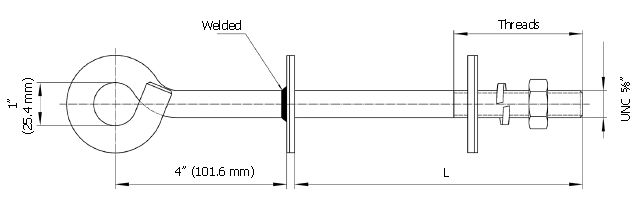

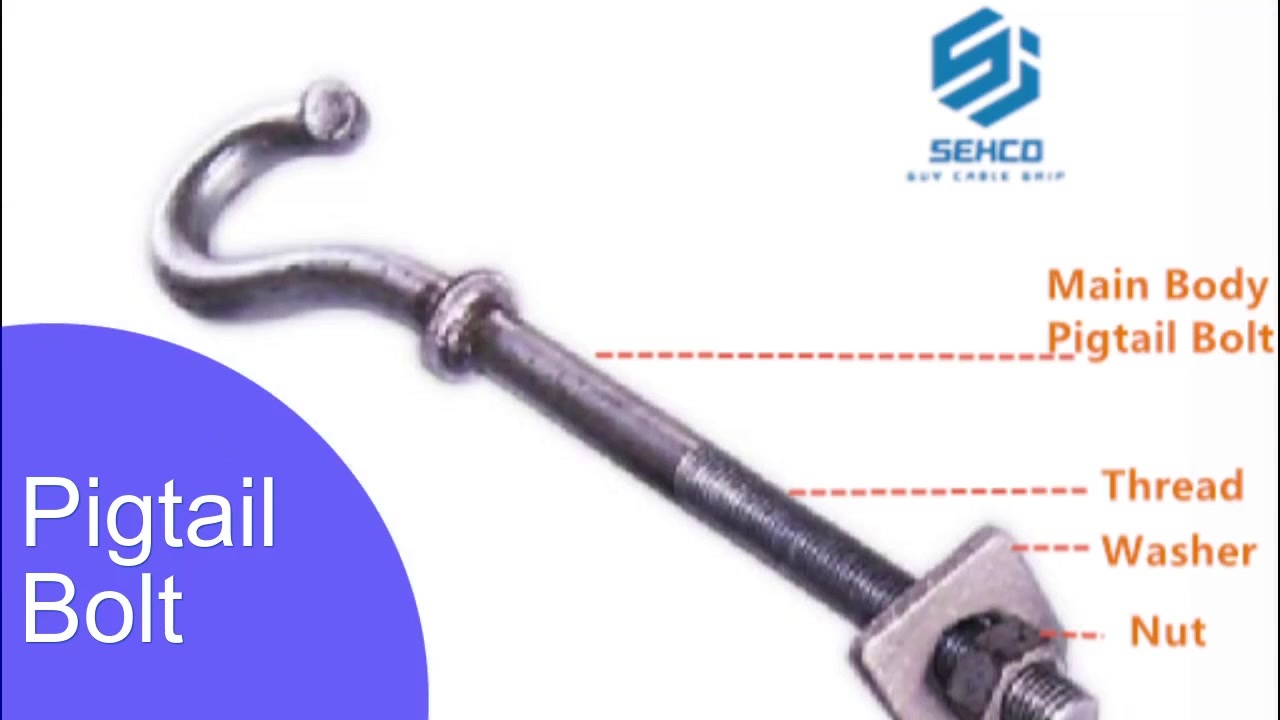

Description Made of carbon steel. It includes one piece of pigtail hook with threads, one welded square curved washer, one free square curved washer, one hex nut and one regular lock washer. Also called as pigtail hook or pigtail eyebolt. Application Used for connecting the dead end clamps or suspension clamps on utility pole.
|
Catalog No. |
L |
Threads Length |
Approx. Weight (kg) |
||
|
inches |
mm |
inches |
mm |
||
|
PBCS-16203 |
8 |
203.2 |
3 |
76.2 |
0.95 |
|
PBCS-16254 |
10 |
304.8 |
3 |
76.2 |
1.00 |
|
PBCS-16305 |
12 |
355.6 |
3 |
76.2 |
1.05 |
