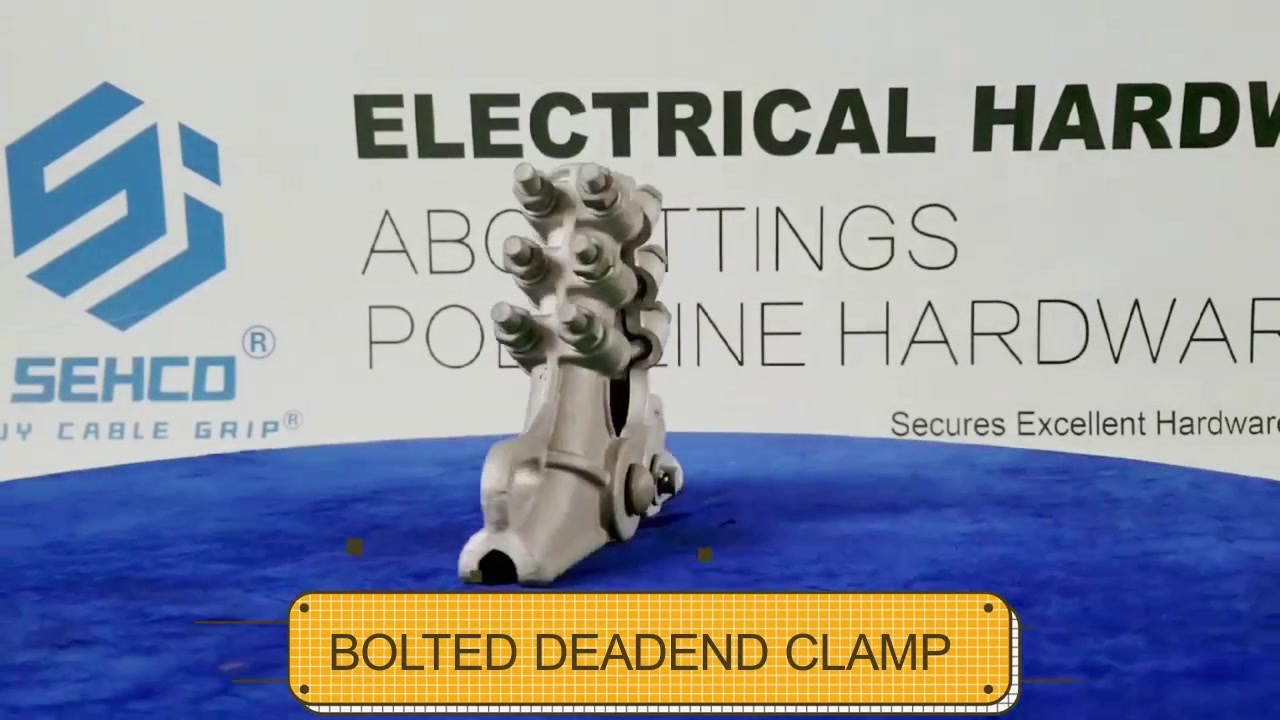

Bolted Dead End Clamp
Description NLL-3SE is composed of an aluminum alloy strain clamp and a socket eye. All dimensions of socket is fully compliance with IEC 60120, 16A which is suitable for fixing to the 16 pin of the ball and socket insulators. Security clip of socket eye is fully compliance with IEC 6038 Application The clamps are designed to anchor a 120 mm2 insulated MV ABC lines with insulators equipped with ball and socket.
|
Cat. No. |
Insulated Messenger Cross Section Area * (mm2) |
Overall Diameter of the Messenger (mm) |
UTS (kN) |
Mass (kg) |
|
NLL-3SE |
120 |
Ø 18.5 |
45 |
2.20 |
|
Note: For other cross section area of insulated messengers, please consult SEHCO ® for detail designs. Also call SEHCO for availability of all sizes and design. |
||||
